Process spectra

Source: R/procspec.R
procspec.Rd

Applies normalization and/or smoothing to spectra for further analysis or plotting.

Usage

procspec(
  rspecdata,
  opt = c("none", "smooth", "maximum", "minimum", "bin", "sum", "center", "clip"),
  fixneg = c("none", "addmin", "zero"),
  span = 0.25,
  bins = 20,
  clip_range = NULL
)

Arguments

rspecdata

(required) a data frame, possibly of class rspec, which contains a column containing a wavelength range, named 'wl', and spectra data in remaining columns.

opt

what type of processing options to apply. User can select multiple options by providing a vector. Possibilities are:

  • "none" does not perform any processing (default).

  • "smooth" applies LOESS smoothing to each spectrum using loess.smooth(). Optimal smoothing parameter can be assessed by using plotsmooth().

  • "minimum" subtracts the minimum from each individual spectra.

  • "maximum" divides each spectrum by its maximum value.

  • "sum" divides each spectrum by summed values.

  • "bin" bins each spectrum into the specified number of bins. bins argument must be set.

  • "center" centers individual spectra by subtracting mean reflectance from all values.

  • "clip" removes a specified range of wavelengths and replaces them by linear interpolation (clipping occurs before smoothing). clip_range must be provided.

fixneg

how to handle negative values. Possibilities are:

  • "none" does not perform negative value correction (default).

  • "zero" sets all negative values to zero.

  • "addmin" adds the absolute value of the maximally negative values of each spectra to the reflectance at all other wavelengths (setting the minimum value to zero, but scaling other values accordingly).

span

sets the smoothing parameter used by loess.smooth().

bins

sets the number of equally sized wavelength bins for opt = "bin".

clip_range

either a numeric vector indicating the two bounds of the range of wavelengths to clip for opt = "clip", or a list of such numeric vectors if multiple ranges are to be clipped.

Value

A data frame of class rspec with the processed data.

References

Cuthill, I., Bennett, A. T. D., Partridge, J. & Maier, E. 1999. Plumage reflectance and the objective assessment of avian sexual dichromatism. The American Naturalist, 153, 183-200.

Montgomerie R. 2006. Analyzing colors. In Hill, G.E, and McGraw, K.J., eds. Bird Coloration. Volume 1 Mechanisms and measurements. Harvard University Press, Cambridge, Massachusetts.

White, T. E., Dalrymple, R. L., Noble D. W. A., O'Hanlon, J. C., Zurek, D. B., Umbers, K. D. L. 2015. Reproducible research in the study of biological coloration. Animal Behaviour, 106, 51-57.

See also

loess.smooth(), plotsmooth()

Author

Chad Eliason cme16@zips.uakron.edu

Examples

data(teal)
plot(teal, select = 10)


# Smooth data to remove noise
teal.sm <- procspec(teal, opt = "smooth", span = 0.25)
#> processing options applied:
#> smoothing spectra with a span of 0.25
plot(teal.sm, select = 10)


# Normalize to max of unity
teal.max <- procspec(teal, opt = c("max"))
#> processing options applied:
#> Scaling spectra to a maximum value of 1
plot(teal.max, select = 10)


# Smoothing directly severe artifacts can artificially modify the shape of
# the entire spectrum. In this case, it is better to clip the artifact and
# then smooth the data.
teal_clip <- procspec(teal, opt = c("clip", "smooth"), clip_range = c(600, 650), span = 0.25)
#> processing options applied:
#> clipping spectra in the following wavelength ranges: 600-650
#> smoothing spectra with a span of 0.25

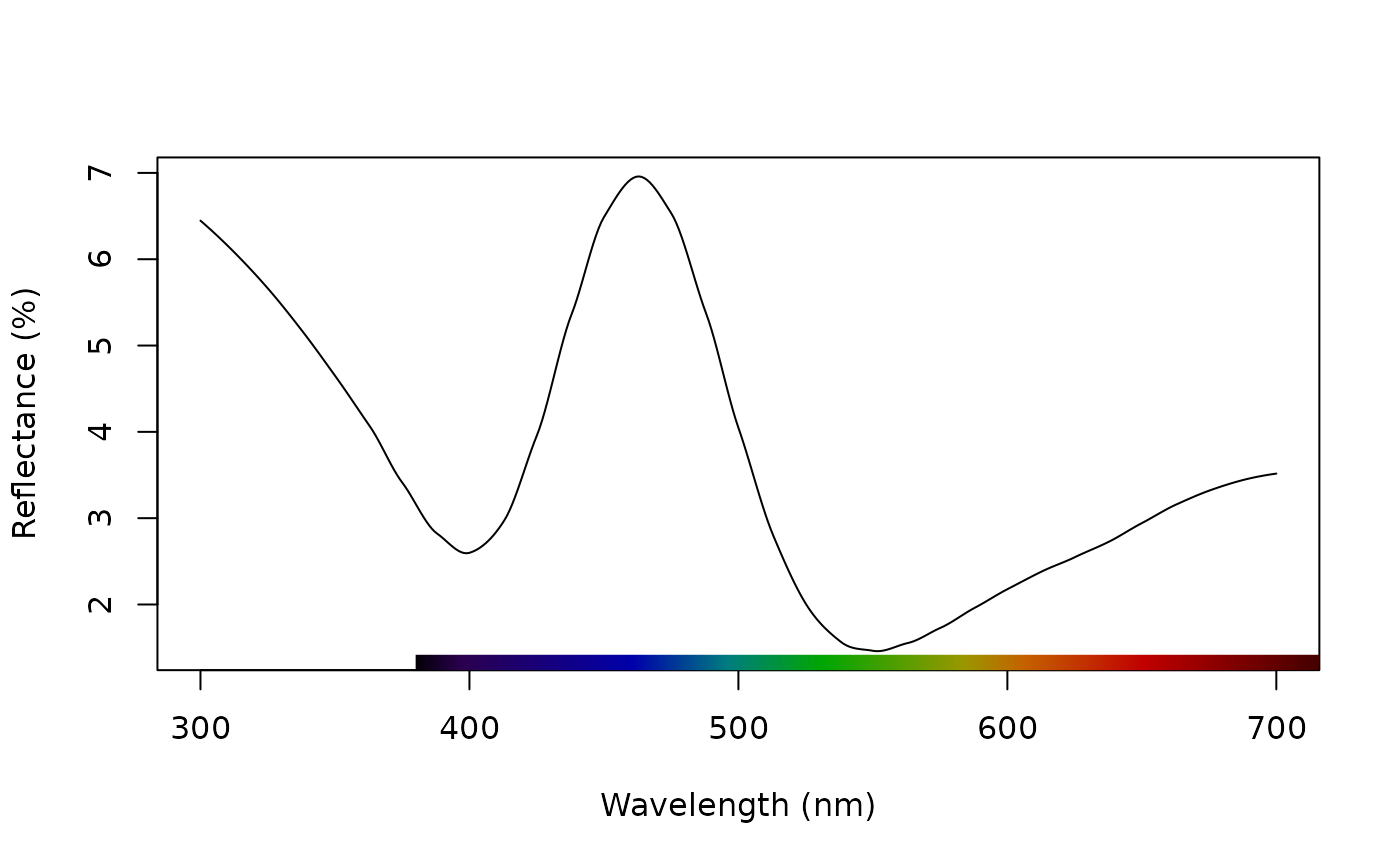

plot(teal_clip, select = 10)
